VIDEO Series Matrix

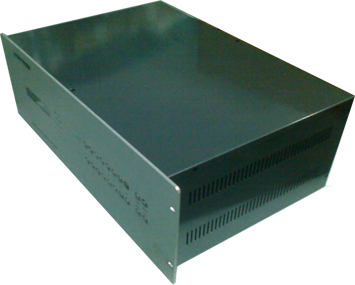

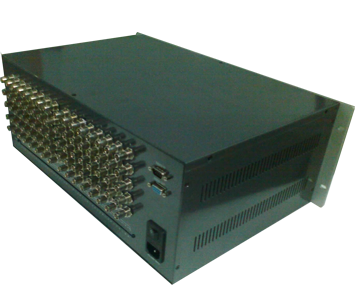

Video/B Matrix Switcher

Triolion vidio and audio matrix switcher, is dedicated to the video and audio signal switching and distribution (unbalanced stereo audio signals), from the multi-path signal input channel to the output channel randomly and independently.

  • Overview
  • Specifications
  • Features

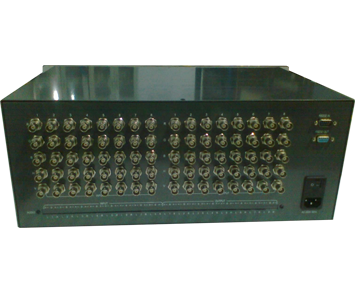

  • Interface

TMX-AV series matrix switcher is specially designed to switch and distribute video and audio signals, which can switch one or more signals to multiple output channels. It is widely used in various occasions, such as Radio & Television, video wall system, remote television and telephone conference and multi-media conference room.

Video Signal Input/Output Resist 75Ω
Video Signal Level 1Vp-p
Video Signal Voltage Range ±1.5V
Insertion Gain 0dB
Video Signal Band Width 60M(-3dB)
Reflection Loss -50dB @ 5MHz (BNC input port), -34dB @ 5MHz(BNC output port)
Signal Isolation 85dB @ 5MHz (input port);58dB @5MHz (output port)
Audio Video
Audio Video Signal Double Track Non Balance, Double Track Balance
Resistance Input>10kΩ, DC Coupling Ou 600Ω(Non Balance), 1.2kΩ(balance), DC Coupling
Audio video signal voltage range ±10V
Insert gain Non Balance Output:0dB, Balance Output:+6dB
Frequency Response 20Hz-25kHz, ±0.05dB
Voltage Input 220V(±20%)/50Hz
Size(W×H×D) TMX-AV8×8-B:2U,482mm×300mm×88mm


  1. Power outage protection, preserve the operating status before shutdown
  2. Support RS-232 interface, provide communication protocol and demonstration program for online use.


  1. Audio interface will be prepared only when selecting audio module
  2. For matrix switcher of 32×16 or even more, no audio module can be provided.
Serial Port RS-232, 9Pin Port, 2-TX, 3-RX, 5-GND
Control Protocol 9600 Baud, 8-Bit, 1Spot Bit, No Rectify Bit
Switching Time 200ns
State Memory Four States Availability

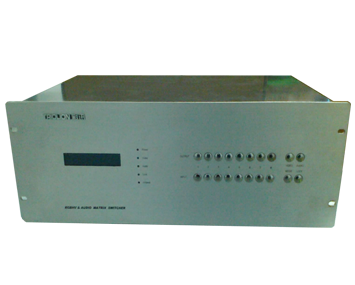

Control Mode Use Button in Front Board
RS-232 Remote Control
Infrared Remote Control (Optional)
Install Way Fixed on the 19" Rack, Through the Fixed Hole
