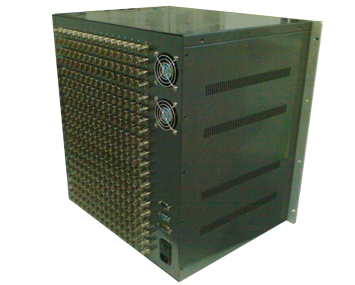

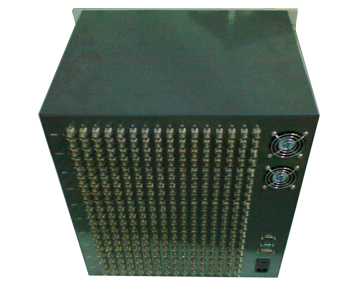

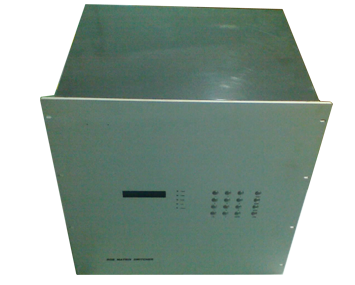

RGB/audio series matrix switcher is a professional PC signal switching equipment with high performance. It is applied to the switching of multi PC signals and providing separated RGBHV distributed output and input terminals. Every distributed signal transmits and switches separately, which lowers the signal attenuation and output high quality image signal.
TMX-RGB series matrix switcher is specially designed to switch and distribute RGBHV and HDTV signals, which can switch one or more signals to multiple output channels. It is widely used in various occasions, such as Radio & Television, video wall system, remote television and telephone conference and multi-media conference room.
Video | |
Video Signal Format | VGA(UXGA), RGBHV, RGBS, RGsB, RsGsBs or HDTV ① |
Resolution | Maximum 1600×1200 |
Video Signal Input/Output Resist | 75Ω |
Video Signal Level | 0.7Vp-p (R/G/B), 1Vp-p(Y), 0.3Vp-p (C/PbPr/CbCr) |
Video Signal Voltage Range | ±1.5V |
Insertion Gain | 0dB |
Video Signal Band Width | 250M(-3dB) |
Reflection Loss | -50dB @ 5MHz (D15input port), -34dB @ 5MHz (D15output port) |
Three Color Isolation | 85dB @ 5MHz (input end), 58dB @5MHz (output end) |
Sync Signal Input Impedance | 510Ω |
Sync Signal Outnput Impedance | 75Ω |
Sync Signal Voltage | 5V |
Audio Video | |
Audio Video Signal | Double Track Non Balance, Double Track Balance |
Resistance | Input>10kΩ, DC Coupling Ou 600Ω(Non Balance), 1.2kΩ(balance), DC Coupling |
Audio video signal voltage range | ±10V |
Insert gain | Non Balance Output:0dB, Balance Output:+6dB |
Frequency Response | 20Hz-25kHz, ±0.05dB |
Size(W×H×D) | TMX-RGB4×4:4U,482mm×300mm×176mm |
TMX-RGB8×4:4U, 482mm×300mm×176mm | |
TMX-RGB8×8:4U, 482mm×300mm×176mm | |
TMX-RGB16×8:7U, 482mm×300mm×308mm | |
TMX-RGB16×16:7U, 482mm×300mm×308mm | |
TMX-RGB32×16:8U, 482mm×300mm×352mm | |
TMX-RGB32×32:11U, 482mm×300mm×484mm |
Inferface | |
Serial Port | RS-232, 9Pin Port, 2-TX, 3-RX, 5-GND |
Control Protocol | 9600 Baud, 8-Bit, 1Spot Bit, No Rectify Bit |
Input Voltage | 220V(±20%)/50Hz |
Consumption | 35W-55W |
Switching Time | 200ns |
State Memory | Four States Availability |
Control Mode | Use Button in Front Board |
RS-232 Remote Control | |
Infrared Remote Control (Optional) | |
Install Way | Fixed on the 19" Rack, Through the Fixed Hole |
