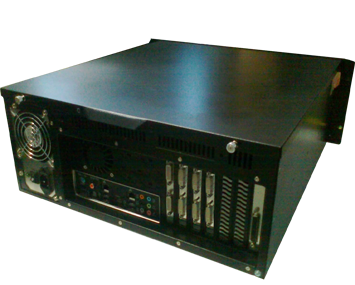

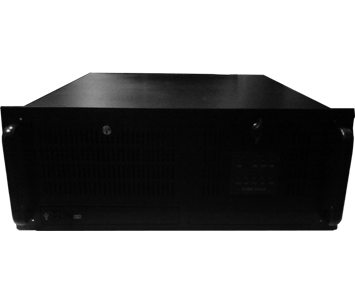

With high-performance image processing and network transmission modules, TMC2200 applies the industrial control computer system architecture so as to finish a combination of video wall system connection.
With windows7 operating system, TMC2200 supports Ethernet network Environment and follows TCP/IP agreement. It can transmit workstation dynamic graphics of networked computer to display on the video wall simultaneously.
It also can mix video windows and computer screens to display on the same screen simultaneously. Moreover ,In order that users can open any windows ,move across the screen and zoom freely on the combined screen by a mouse and keyboard ,it drives the entire projection array, which makes different computer signals realize combination display that supports millions or even tens of millions of display pixels.
Cabinet | Appearance | 19"Standard Shelves Case |
Power | 300W - 600W Standard Industry Power | |
4U | 482(L)×482(W)×177(H)mm | |
6U | 485(L)×483(W)×266(H)mm | |
Hyper Scale Processor | Extended Case Adopted | |
Operating Environment | Temperature | 0ºC - 40ºC non condensing |
Humidity | 10 - 90% non condensing | |
Altitude | Under 3500m | |
Electrical Requirements | Voltage Input | 220V AC |
Horizontal Frequency | 50 - 60Hz | |
Power Consumption | 660W Each Set | |
Software Support | Operation System | Windows 7 In Chinese |
Control Software | VScreen 22 | |
Long distance IP Window | Distant IP Window Software | |
Computer configuration | CPU | Intel I7 920 Or Intel Latest Series |
System Memory | 4G | |
Hard Disk | 500G | |
CD-ROM | 16-52× DVD | |
Network Interface | 2(10/100/1000 Mbps RJ45interface) | |
USB | 2 | |
COM | 2 |
VGA Input | Maximum Inputs | 32 |
Biggest Resolution | 2048×1536@60HZ | |
Interface Type | VGA(HD15)/DVI-VGA Adapter Adopted | |
DVI Input | Maximum Inputs | 32 |
Biggest Resolution | 1920×1200@60HZ | |
Interface Type | DVI-I | |
HDMI Input | Maximum Inputs | 32 |
Biggest Resolution | 1920×1080@60HZ | |
Interface Type | HDMI/DVI-HDMI Adapter Adopted | |
Video Input | Maximum Inputs | 128 |
Interface Type | NTSC/PAL/SECAM | |
Interface Type | BNC | |
Graphical Display Function | Local Video Memory | 128M Channel |
Maximum Outputs | 40 | |
Resolution | 640×480 - 1920×1200@60HZ | |
Interface Type | DVI-I |
