Distributed Multi-screen Controller

Distributed

Is a set of connected through a network of signal input and output devices and control system which has the function of image matching images.

  • Overview
  • Specifications
  • Features
  • Interface

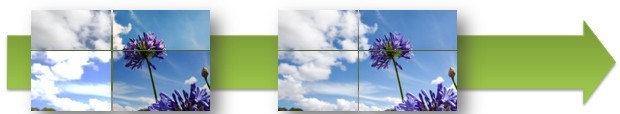

Based on JPEG-2000 lossless encoding decoding algorithm.Satisfied with extreme display requirement –point-to-point, single pixel true color, high resolution still image.Uncompressed color space YUV 4:4:4 | RGB 888.

Reduced signal disturb with as short as possible VGA/DVI/CVBS cable.Signal cables match much better than traditional video wall controller.End to end digital transmission without degradation.

Based on Internet Protocol in internet layer.End to end digital transmission.Adopted private hardware encoding & decoding algorithm, not in general video compression algorithm.

Low to 5W power consumption, no fan, no ventilation,silence, sealing design. Single input/output by one node. Network switch (MTBF>100,000h). Based on FPGA, very stable.

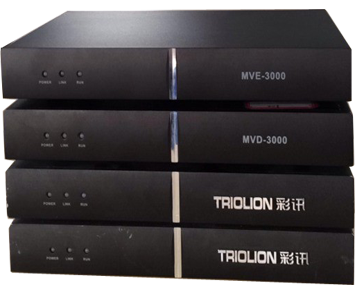

Cabinet Appearance 19"Standard Shelves Case
3U 440(L)×300(W)×135(H)mm
8U 440(L)×300(W)×356(H)mm
12U 440(L)×430(W)×534(H)mm
24U 440(L)×450(W)×1068(H)mm
Operating Environment Temperature 0ºC - 40ºC non condensing
Humidity 10 - 90%
Altitude Under 3500m
Electrical Requirements Control Protocol Serial Port Protocol, Network Protocol
Operating Mode Standard RS-232, Distant Network Control
Standard Power 700W
Voltage Input 220V AC
Horizontal Frequency 50 - 60Hz
Operating Mode 3U 300W
8U 700W
12U 700W
24U 1400W
  1. SDPD(Smart Division Precise Distribution).
  2. Single signal bandwidth occupation is no greater than an iNode’s through the entire network, no redundant bandwidth.
  3. The bandwidth that occupied by oNode is no greater than the physical resolution of single screen, it’s out-put oriented.
  4. Distributed architecture,No input or output limitation.
  5. Linear cost growth according to input & output processing capacity,Cost effective for big project.

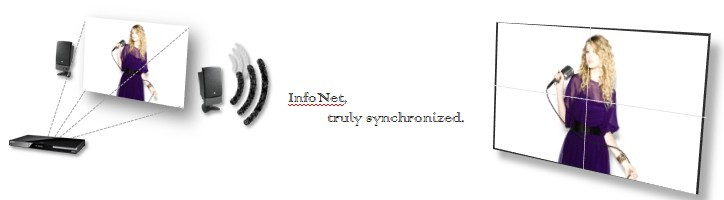

  6. Double buffering & frame synchronization, Network high speed SYN packet, Genlock stay technology to resolve phase differences.
  7. Coincidence-requiretime different between audio & video less than 100ms,The maximum video latency less than 70ms.

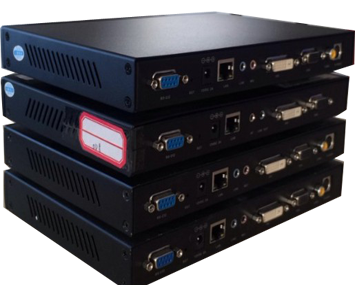

Interface Type iNet-in HD iNet-in SD
DVI-D (Compatible with HDMI interface), VGA (Compatible with YPbPr interface), CVBS, S-Video, 3.5mm TRS DVI-I (Compatible with DVI, VGA, HDMI, YPbPr interface), 3.5mm TRS
Operating Environment Temperature:0ºC - 40ºC Temperature:0ºC - 40ºC
Humidity:10 - 90% non condensing Humidity:10 - 90% non condensing
Altitude:Under 3048m Altitude:Under 3048m
Electrical Requirements Consumption:4W Consumption:4W
MTBF:>50000hr MTBF:>50000hr
Network Protocol DHCP, UDP, TCP/IP DHCP, UDP, TCP/IP
Control Centralized Management Centralized Management
