LED Backlight LCD

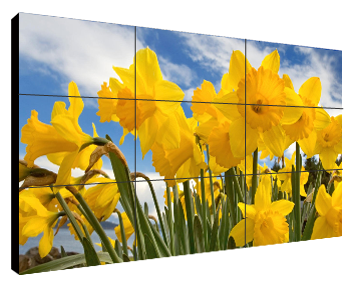

The products use DID (Digital Information Display), a new technology of LCD display system from AUO. Compared with ordinary LCD technology, DID improves the structure of liquid crystal molecules with high brightness, full high definition (1080P) and long life-span. When the units are horizontally and vertically spliced into a whole screen, Triolion LCD video wall would provide an ultra-high resolution (1920*M*1080*N) for customers with larger LCD display image.

  • Overview
  • Specifications
  • Features
  • Interface
  • Unlike front projection, tiled LCDs require less maintenance costs, have a better contrast ratio and are not influenced by ambient light.
  • Unlike plasma technology, tiled LCDs require less power consumption and are not subject to permanent, irreversible burn-in.
  • Unlike normal-bezel LCD displays, tiled LCDs offer more scalability, minimize bezel distraction and allow optimal usability of the screen surface with high resolution.
  • Unlike lamp-based LCD displays, tiled LCDs with LED backlights offer more brightness, optimal image quality and a high life expectancy.
LCD Module Diagonal Size 46"
Backlight Source LED
Size(W×H×D) 1026.68×578.27×110mm
Image Area 1018.08×572.67mm
Viewing Angle 178º(H/V)
Native Resolution 1920×1080(FHD)
Brightness 700cd/m2
Contrast Ratio 4000:1
Power AC Voltage AC 200-240V,50/60Hz,2.0A
Maximum Consumption 300W
Working Consumption 220W
Wstand-by power consumption ≤0.5W
Bezel Bezel Width 3.2mm(U/L),1.8mm(R/B)

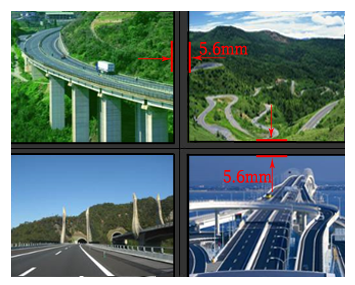

Optical GAP 5.6mm
Color Black
Net Weight 25kg
Working Conditions Temperature 0-50ºC
Humidity 20%-90%(Non-Condensing)
  • Space-saving display wall solution
  • Lower heat output than traditional lamp-based systems
  • Long panel life as LED backlights reduce burn-in and colorations
  • Stable colors across the entire video wall
  • Exceptionally narrow bezel resulting in very small seams
  • High brightness, excellent contrast and a wide viewing angle
  • Easy to install, service and maintain thanks to front access
  • Eco-friendly and durable solution as LEDs contain no mercury and are energy-efficient
Computer Input/Output Simulation VGA(D-Sub15)
Digital DVI(DVI-I)
Working Resolution 640×480@60Hz~1920×1080@60Hz
AV Input/Output Input CVBS(BNC)×4 S-VIDEO(mini-DIN) Y/Pb/Pr(BNC)
Output CVBS(BNC)
Video Standard CVBS/S-VIDEO: PAL/NTSC/SECAM Y/Pb/Pr: 720P,1080I,HDTV
Control Input/Output Input RS-232C(RJ45)
Output RS-232C(RJ45)×2
