LED Backlight LCD
55"Super Narrow Bezel LCD Display Unit
The products use DID (Digital Information Display), a new technology of LCD display system from Samsung. Compared with ordinary LCD technology, DID improves the structure of liquid crystal molecules with high brightness, full high definition (1080P) and long life-span. When the units are horizontally and vertically spliced into a whole screen, Triolion LCD video wall would provide an ultra-high resolution (1920*M*1080*N) for customers with larger LCD display image.
- Overview
- Specifications
- Features
- Interface
- Unlike front projection, tiled LCDs require less maintenance costs, have a better contrast ratio and are not influenced by ambient light.
- Unlike plasma technology, tiled LCDs require less power consumption and are not subject to permanent, irreversible burn-in.
- Unlike normal-bezel LCD displays, tiled LCDs offer more scalability, minimize bezel distraction and allow optimal usability of the screen surface with high resolution.
- Unlike lamp-based LCD displays, tiled LCDs with LED backlights offer more brightness, optimal image quality and a high life expectancy.
| LCD Module |
Diagonal Size |
55" |
| Backlight Source |
LED |
| Size(W×H×D) |
1215.5×686.3×125mm |
| Image Area |
1209.6×680.4mm |
| Viewing Angle |
178º(H/V) |
| Native Resolution |
1920×1080(FHD) |
| Brightness |
500cd/m2 or 700cd/m2 |
| Contrast Ratio |
3500:1 or 3000:1 |
| Power |
AC Voltage |
AC 200-240V,50/60Hz,2.0A |
| Maximum Consumption |
400W |
| Working Consumption |
160W or 200W |
| Wstand-by power consumption |
≤2W |
| Bezel |
Bezel Width |
3.7mm(U/L),1.8mm(R/B) |

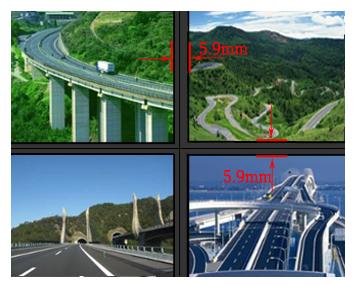

| Optical GAP |
5.9mm |
| Color |
Black |
| Net Weight |
40kg |
| Working Conditions |
Temperature |
0-50ºC |
| Humidity |
20%-90%(Non-Condensing) |
| Computer Input/Output |
Simulation |
VGA(D-Sub15) |
| Digital |
DVI(DVI-I) |
| HD |
HDMI(HDMI A) |
| Working Resolution |
640×480@60Hz~1920×1080@60Hz |
| AV Input/Output |
Input |
CVBS(BNC)×4 |
S-VIDEO(mini-DIN) |
| Output |
CVBS(BNC) |
| Video Standard |
CVBS/S-VIDEO: PAL/NTSC/SECAM |
| Control Input/Output |
Input |
RS-232C(RJ45) |
| Output |
RS-232C(RJ45) |
