82" LCD Display Unit

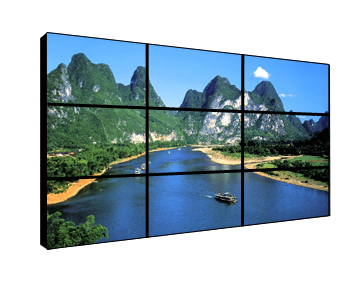

The products use DID (Digital Information Display), a new technology of LCD display system from Samsung. Compared with ordinary LCD technology, DID improves the structure of liquid crystal molecules with high brightness, full high definition (1080P) and long life-span. When the units are horizontally and vertically spliced into a whole screen, Triolion LCD video wall would provide an ultra-high resolution (1920*M*1080*N) for customers with larger LCD display image.

  • Overview
  • Specifications
  • Features
  • Interface
  • High Brightness,High Contrast,High Definition.
  • Brightness Uniformity,Image Stabilization,Better Color Saturation.
  • Width Bezel Frame & Maintained from the front Design(Optional).
  • Patterned Vertical Alignment,178┬░Viewing Angle(H&V).
  • Upright, Wall Hanging (Optional).
LCD Module Diagonal Size 82"
Backlight Source CCFL
Size(W×H×D) 1952×1173×132mm
Image Area 1549.4×871.56mm
Viewing Angle 178º(H/V)
Native Resolution 1920×1080(FHD)
Brightness 450/600cd/m2
Contrast Ratio 2000:1/1200:1
Power AC Voltage AC 200-240V,50/60Hz,2.0A
Maximum Consumption 350W
Working Consumption 200W
Wstand-by power consumption ≤2W
Bezel Bezel Width 70mm(L/R),70mm(U),80mm(B)
Optical GAP -
Color Black
Net Weight 73kg
Working Conditions Temperature 0-50ºC
Humidity 20%-90%(Non-Condensing)

Computer Input/Output Simulation VGA(D-Sub15)
Digital DVI(DVI-I)
HD HDMI(HDMI A)
Working Resolution 640×480@60Hz~1920×1080@60Hz
AV Input/Output Input CVBS(BNC)×4 S-VIDEO(mini-DIN) Y/Pb/Pr(BNC)
Output CVBS(BNC)
Video Standard CVBS/S-VIDEO: PAL/NTSC/SECAM Y/Pb/Pr: 720P/1080I/1080P,HDTV
Control Input/Output Input RS-232C(RJ45)
Output RS-232C(RJ45)
