CCFL LCD
46" Narrow Bezel LCD Display Unit

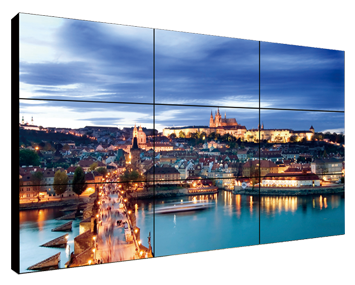

The products use DID (Digital Information Display), a new technology of LCD display system from Samsung. Compared with ordinary LCD technology, DID improves the structure of liquid crystal molecules with high brightness, high definition and long life-span. When the units are horizontally and vertically spliced into a whole screen, Triolion LCD video wall would provide an ultra-high resolution (1366*M*768*N) for customers with larger LCD display image.
- Overview
- Specifications
- Features
- Interface
- High Brightness,High Contrast,High Definition.
- Brightness Uniformity,Image Stabilization,Better Color Saturation.
- Width Bezel Frame & Maintained from the front Design(Optional).
- Patterned Vertical Alignment,178°Viewing Angle(H&V).
- Upright, Wall Hanging (Optional).
| LCD Module |
Diagonal Size |
46" |
| Backlight Source |
CCFL |
| Size(W×H×D) |
1025.65×579.84×120mm |
| Image Area |
1018.08×572.67mm |
| Viewing Angle |
178º(H/V) |
| Native Resolution |
1366×768(XGA) |
| Brightness |
450cd/m2 |
| Contrast Ratio |
4500:1 |
| Power |
AC Voltage |
AC 200-240V,50/60Hz,2.0A |
| Maximum Consumption |
350W |
| Working Consumption |
200W |
| Wstand-by power consumption |
≤2W |
| Bezel |
Bezel Width |
4.3(U/L)mm,2.4(R/B)mm |

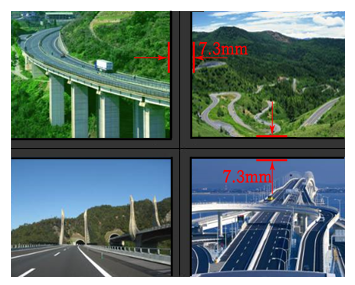

| Optical GAP |
7.3mm |
| Color |
Black |
| Net Weight |
18kg |
| Working Conditions |
Temperature |
0-50ºC |
| Humidity |
20%-90%(Non-Condensing) |
| Computer Input/Output |
Simulation |
VGA(D-Sub15) |
| Digital |
DVI(DVI-I) |
| HD |
HDMI(HDMI A) |
| Working Resolution |
640×480@60Hz~1920×1080@60Hz |
| AV Input/Output |
Input |
CVBS(BNC) |
| Output |
CVBS(BNC) |
| Video Standard |
CVBS:PAL/NTSC/SECAM |
| Control Input/Output |
Input |
RS-232C(RJ45) |
| Output |
RS-232C(RJ45)×2 |
