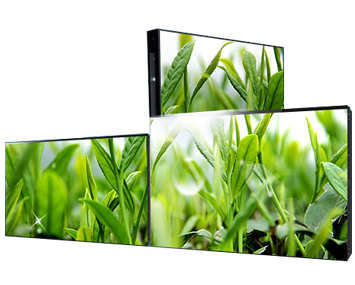

46" Width Bezel LCD Display Unit

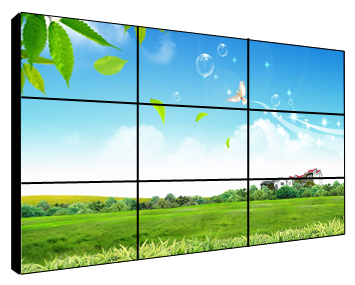

The products use DID (Digital Information Display), a new technology of LCD display system from Samsung. Compared with ordinary LCD technology, DID improves the structure of liquid crystal molecules with high brightness, high definition and long life-span. When the units are horizontally and vertically spliced into a whole screen, Triolion LCD video wall would provide an ultra-high resolution (1920*M*1080*N) for customers with larger LCD display image.

  • Overview
  • Specifications
  • Features
  • Interface
  • High Brightness,High Contrast,High Definition.
  • Brightness Uniformity,Image Stabilization,Better Color Saturation.
  • Width Bezel Frame & Maintained from the front Design(Optional).
  • Patterned Vertical Alignment,178┬░Viewing Angle(H&V).
  • Upright, Wall Hanging (Optional).
LCD Module Diagonal Size 46"
Backlight Source CCFL
Size(W×H×D) 1048.4×601.6×126mm
Image Area 1018.08×572.67mm
Viewing Angle 178º(H/V)
Native Resolution 1920×1080(FHD)
Brightness 700cd/m2
Contrast Ratio 3000:1
Power AC Voltage AC 200-240V,50/60Hz,2.0A
Maximum Consumption 350W
Working Consumption 200W
Wstand-by power consumption ≤2W
Bezel Bezel Width 10mm
Optical GAP 27mm
Color Black
Net Weight 15kg
Working Conditions Temperature 0-50ºC
Humidity 20%-90%(Non-Condensing)
Computer Input/Output Simulation VGA(D-Sub15)
Digital DVI(DVI-I)
Working Resolution 640×480@60Hz~1920×1080@60Hz
AV Input/Output Input CVBS(BNC)
Output CVBS(BNC)
Control Input/Output Input RS-232C(RJ45)
Output RS-232C(RJ45)×2
